SFA-2700 Automatic Box Packer
FOOD & BEVERAGE
Production Line Planning
& Machinery Manufacture
DESIGNED AROUND YOU.

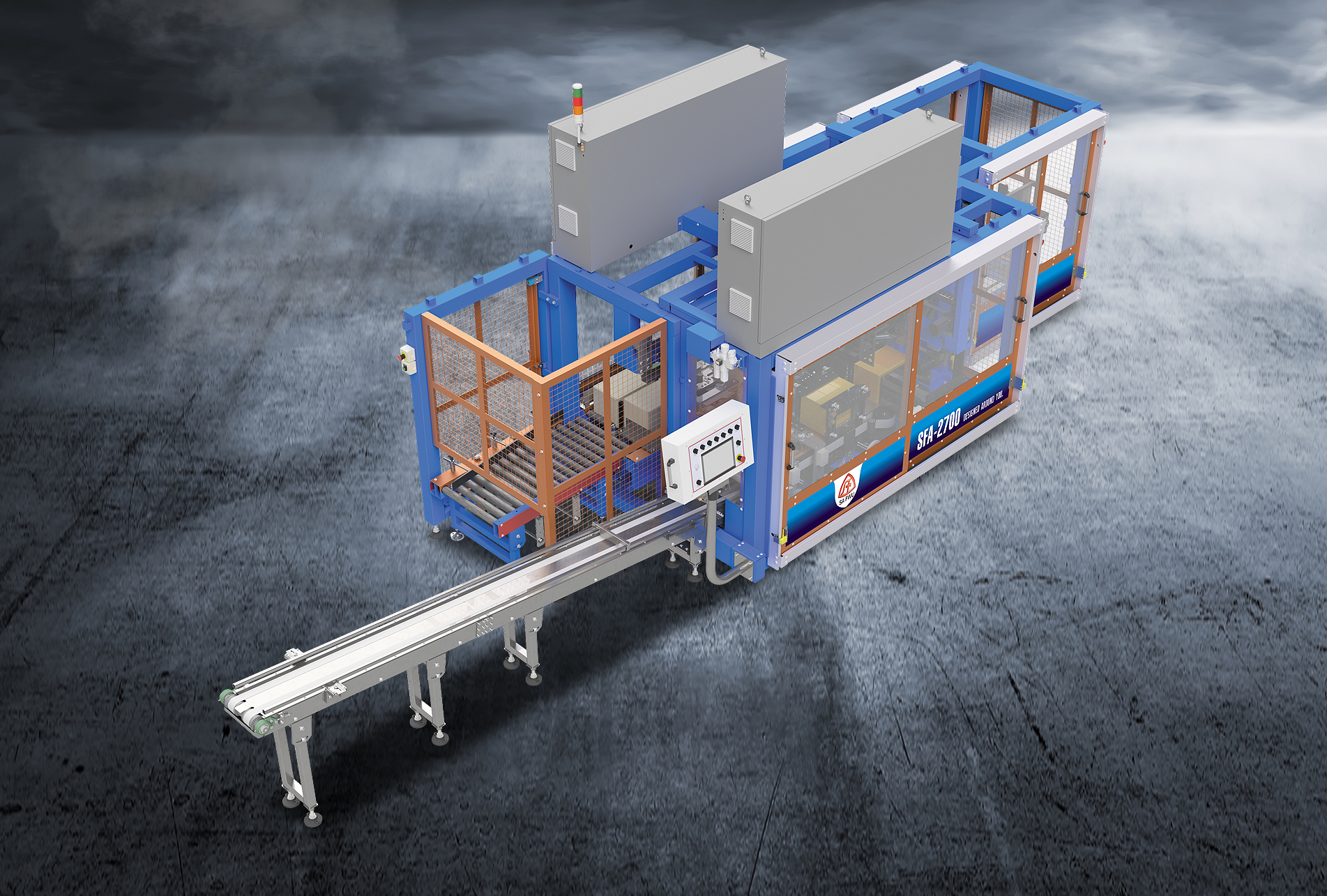

SFA-2700
Automatic Box Packer
SFA-2700
Automatic Box Packer
| |
|
| ● |
Human-Computer Interaction Design. |
| ● |
Flexible Design for side load box insert mechanism. |
| ● |
Parameters can be set and modified on the screen.
|
| ● |
Minimization of the changeover times, in order to quiktly switch from a production to another one. |
| ● |
All moveable parts are provided with grease nozzle for lubrication. Hard-to-reach bearings located at the machine bottom are centralized lubrication at outside through oil tubes.
|
| ● |
Product and case / basket size ranges available on request. |
| |
|
| |
|
|
| |
|
| ● |
Various product available within one case packer. |
| ● |
Machine exit with additional safety covers. |
| ● |
Emergency stop on all side of the machinery. |
| ● |
Ethernet available for production data transfer to the customer's control system. |
|
| MODEL |
SFA-2700 |
| Power Source |
Adapted to Local Electricity Sources at Installation Place |
| Power Capacity |
13 KW |
| Air Pressure |
5.0~6.0 kg/cm2 |
| Machine Dimensions |
L : 8017 x W : 2152 x H : 3007 mm |
| Processing Capacity |
10 cartons/baskets per min |
| Operation Control |
English/Chinese Display System for User-Friendly Interface |
